2015 Nissan Teana Timing Chain Components (M9R Diesel Engine)

Last Updated on December 29, 2019 by Christ

2015 Nissan Teana Timing Chain Components (M9R Diesel Engine) – If you want to buy a luxury sedan and have very sophisticated technology and complete once for security then you should also know about the car Nissan Teana which has become one of the best current car class sedans. And indeed for sales of Teana car is very unique all due to be different names, such as car sales in Australia is sold under the name Nissan Maxima while in Hong Kong, Singapore, and other countries, this car is sold under the name Nissan Cefiro. But Nissan Teana uses the same platform as other Nissan cars, namely Maxima and Altima.

All-New Nissan Teana designed very modern and offers all the security and comfort. The third generation of this car has several options such as the engine, 1.6L I4 MR16DDT, MR20DE 2.0L L4, L4 QR25DE 2.5L, 3.5L V6 VQ35DE [4], M9R dCi Diesel 2.0L I4. The additional capacity of 2,500 cc engine in the Nissan Teana provides greater engine power, though the large engine capacity did not alter the fuel efficiency of cars. Nissan Teana using X-Tronic CVT transmission, so when making the beat gearshift feels comfortable. In this post, we will provide information about the components of the Timing Chain of cars that use the M9R Diesel Engine. This machine was developed by Renault and Nissan, and included in the ranks of straight-4 automobile Diesel engines using cast-iron block.

2015 Nissan Teana Timing Chain Components (M9R Diesel Engine):

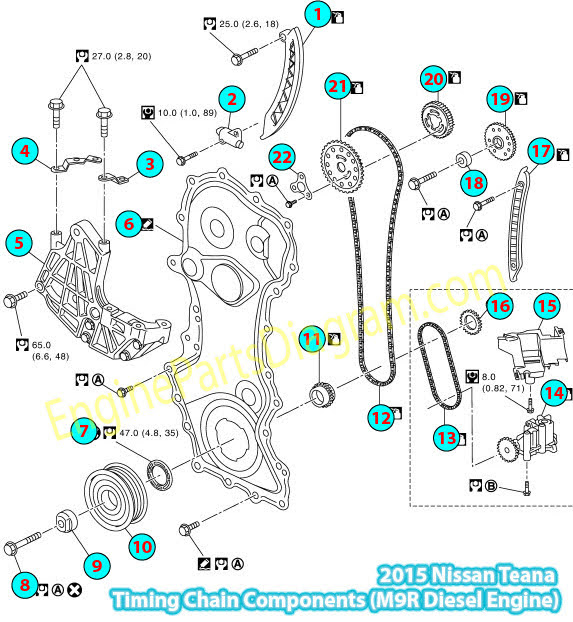

2015 Nissan Teana Timing Chain Components (M9R Diesel Engine)
  1. Timing chain slack guide
  2. Timing chain tensioner
  3. Engine mounting stay (front)
  4. Engine mounting stay (rear)
  5. Engine mounting bracket
  6. Front cover
  7. Front oil seal
  8. Crankshaft pulley bolt
  9. Crankshaft spacer
  10. Crankshaft pulley
  11. Crankshaft sprocket
  12. Timing chain
  13. Oil pump drive chain
  14. Oil pump
  15. Oil pump baffle plate
  16. Oil pump sprocket
  17. Timing chain tension guide
  18. Wear compensation gear spacer
  19. Wear compensation gear
  20. Timing sprocket (rear)
  21. Timing sprocket (front)
  22. Timing sprocket spacer

This diagram is based on the Nissan workshop manual. Besides being used in the 2015 Nissan Teana, this engine is also used on the Nissan Qashqai, Nissan X-Trail, Renault Laguna, Renault Mégane, Renault Koleos, Renault Espace, and Renault Vel Satis. Hopefully this article 2015 Nissan Teana Timing Chain Components (M9R Diesel Engine) useful for you.

(Visited 1,667 times, 1 visits today)

1 Comment on “2015 Nissan Teana Timing Chain Components (M9R Diesel Engine)

  1. Part 17 shows guide rail this has elongated hole on one bolt hole, can’t see any diagrams that show if this goes top or bottom, otherwise the part seems reversible! Any ideas pls. If fitted wrong way what impact would it have ? It seems to fit in both ways.
