2005 Nissan X-Trail T30 Timing Chain Parts Diagram (QR20DE Engine)

2005 Nissan X-Trail T30 Timing Chain Parts Diagram (QR20DE Engine) – Nissan did a facelift in 2003 were produced locally (CKD). One of which had a refresher is a model honeycomb grille with two variants, St (Sport Touring) and Xt (Extra Touring). Engine capacity to 2,500 cc. Not only that, the 4×4 version also had imported CBU form. It also created a variant Stt in 2005.

Not many changes are visible in the X-Trail CVT which first came out from 2004 until now, because so far only experience a change in the sector faces only to look no refreshment. Nissan still relying on machine type 2.0 and 2.5 with CVTC and ECCS technology. For the 2.0-liter engine, both of which use a 6-speed manual transmission or Xtronic CVT with manual mode, use QR20DE series engine produces 147 hp (110 kW) and 148 lb · ft (200 N · m).

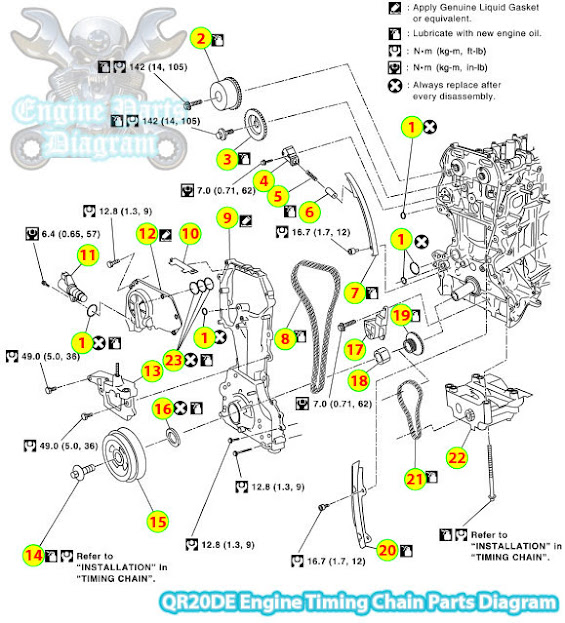

2001-2007 Nissan X-Trail T30 Timing Chain Parts Diagram (QR20DE Engine):

  1. O-ring
  2. Camshaft sprocket (INT)
  3. Camshaft sprocket (EXH)
  4. Chain tensioner
  5. Spring
  6. Chain tensioner plunger
  7. Timing chain slack guide
  8. Timing chain
  9. Front cover
  10. Chain guide
  11. Intake valve timing control solenoid valve
  12. Intake valve timing control cover
  13. RH engine mounting bracket
  14. Crankshaft pulley bolt
  15. Crankshaft pulley
  16. Front oil seal
  17. Balancer unit timing chain tensioner
  18. Oil pump drive spacer
  19. Crankshaft sprocket
  20. Timing chain tension guide
  21. Balancer unit timing chain
  22. Balancer unit
  23. Oil ring

If you are looking for information about Nissan X-Trail QR engine timing mark CLICK HERE

This engine was applied in 2001, 2002, 2003, 2004, 2005, 2006, 2007 Nissan X-Trail T30, other than that the machine is also applied to other cars such as the Nissan Primera P12, Nissan Serena C24, Nissan Teana J31, the Nissan Wingroad Y11, Nissan Avenir W11, Nissan Prairie M12. Hopefully the article of 2005 Nissan X-Trail T30 Timing Chain Parts Diagram (QR20DE Engine) useful for you.
