2003-2006 Ducati 749 999 Engine Timing Parts Diagram – It is a sport bike from Ducati that was produced from 2003 to 2006. Ducati 749 is armed with a twin Testastretta L configuration engine with 749cc capacity is to produce power of 117.6 hp @ 10,250 rpm and a torque of 81.5 Nm @ 8,250 rpm (measured at the crankshaft). While for the Ducati 999 is armed with twin Testastretta L configuration engine with 999 cc capacity produces a power of 103 kW (138 hp) @ 9,750 rpm and a torque of 11.1 kg · m (108.9 N · m; 80.3 lb · ft) @ 8,000 rpm.

With a total weight of 194.7 kg weight make this bike is quite stable at the moment ‘ high-speed cornering’ by retaining the characteristic Ducati pulse propulsion. Because this bike made specifically for racing so more often face extreme conditions on the track, then the routine checks should be more frequent (including the clutch system, brakes, bearings and torque nuts and bolts on the engine) compared with other motors designed specifically for the road highway. On this occasion, we will give you a diagram of the engine parts of the Ducati 749/999.

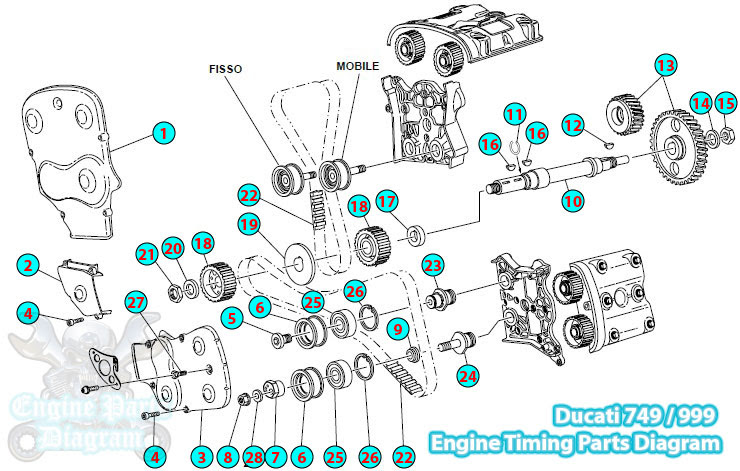

2003-2006 Ducati 749 999 Engine Timing Parts Diagram

2003-2006 Ducati 749 999 Engine Timing Parts Diagram
  1. Vertical belt outer cover (BLACK)
  2. Outer central cover (BLACK)
  3. Horizontal belt outer cover (BLACK)
  4. Screw
  5. Setscrew
  6. Bush
  7. Tensioner eccentric
  8. Nut
  9. Spacer
  10. Timing layshaft
  11. Snap ring
  12. Woodruff key
  13. Timing gears pair
  14. Lock washer
  15. Hexagon nut
  16. Woodruff key
  17. Spacer
  18. Timing belt roller
  19. Belt roller separating washer
  20. Spacer
  21. Elastic-stop ring nut
  22. Timing drive toothed belt
  23. Fixed tensioner roller pin
  24. Movable tensioner roller pin
  25. Bearing
  26. Circlip
  27. Stud bolt
  28. Spring washer

This diagram is based on the Ducati workshop manual. The above diagram applies to 2003, 2004, 2005, 2006 Ducati 749/999. This can also be applied to the 998, 996R and S4R Testastretta engines. Hopefully the article of 2003-2006 Ducati 749 999 Engine Timing Parts Diagram useful for you.
